AquaTrigger® Automatic Flip-Up Flood Barrier

BH-590

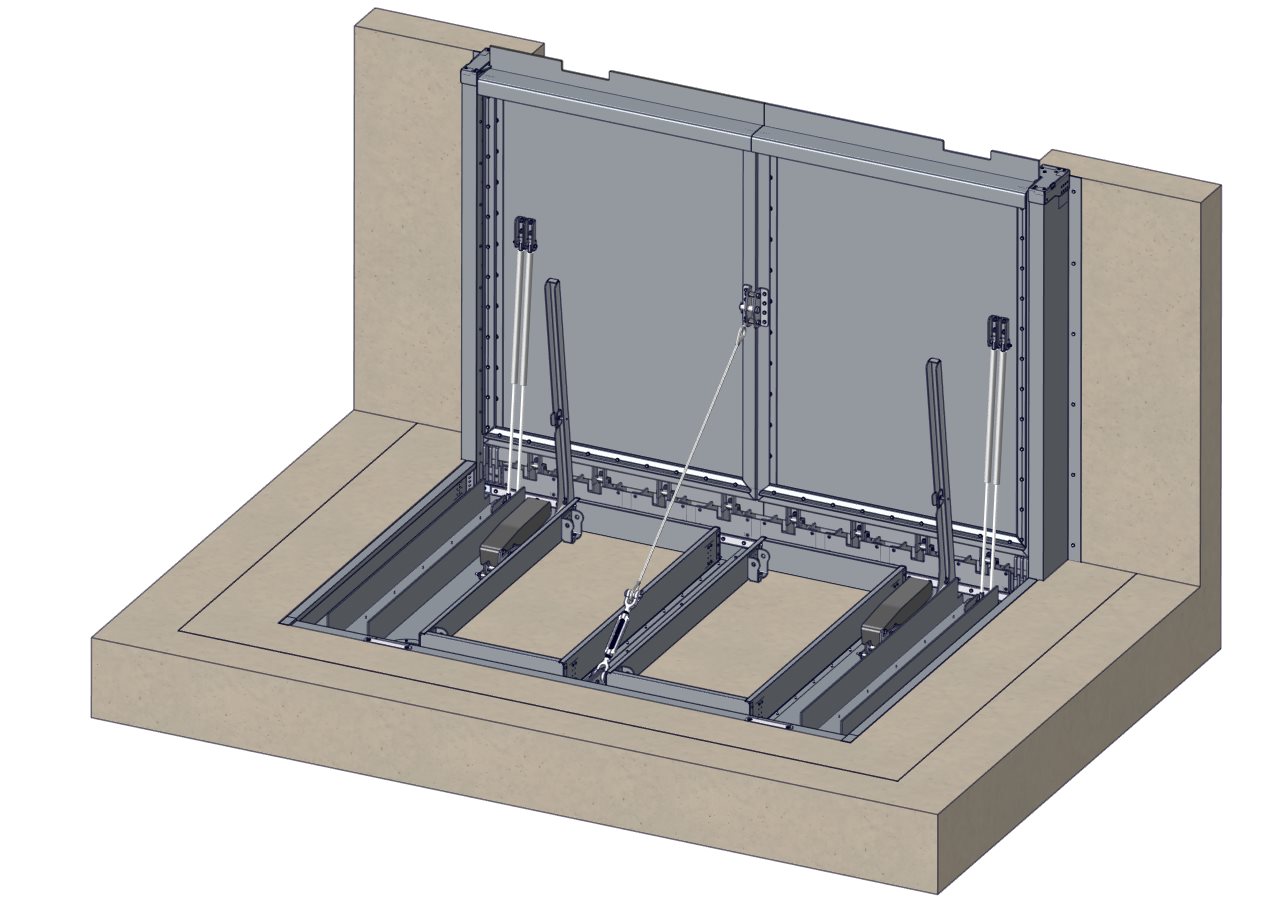

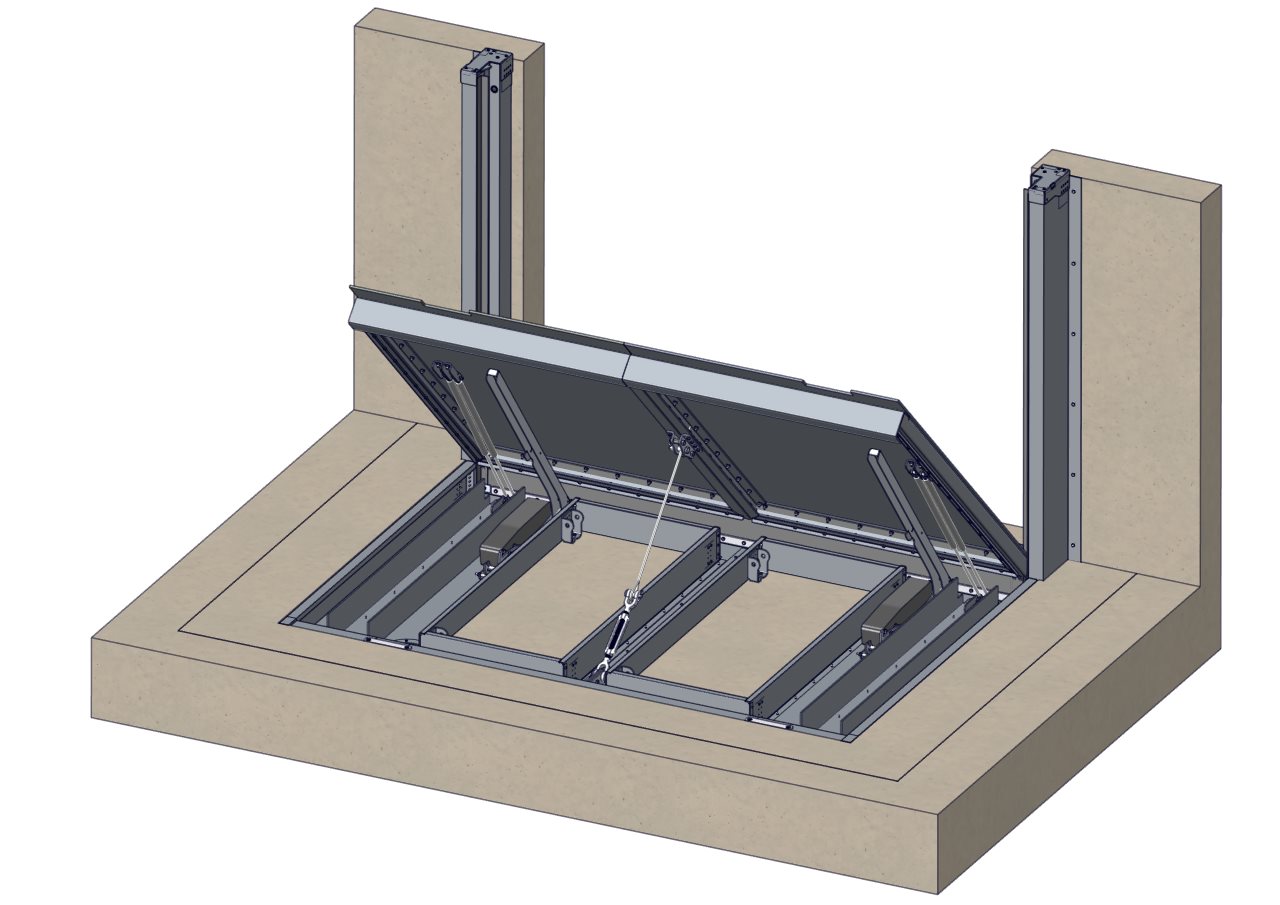

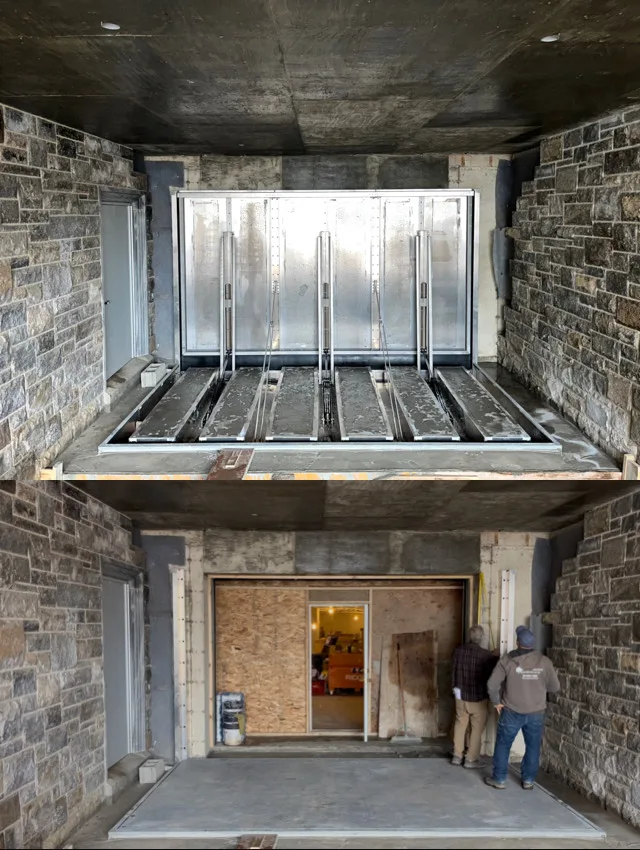

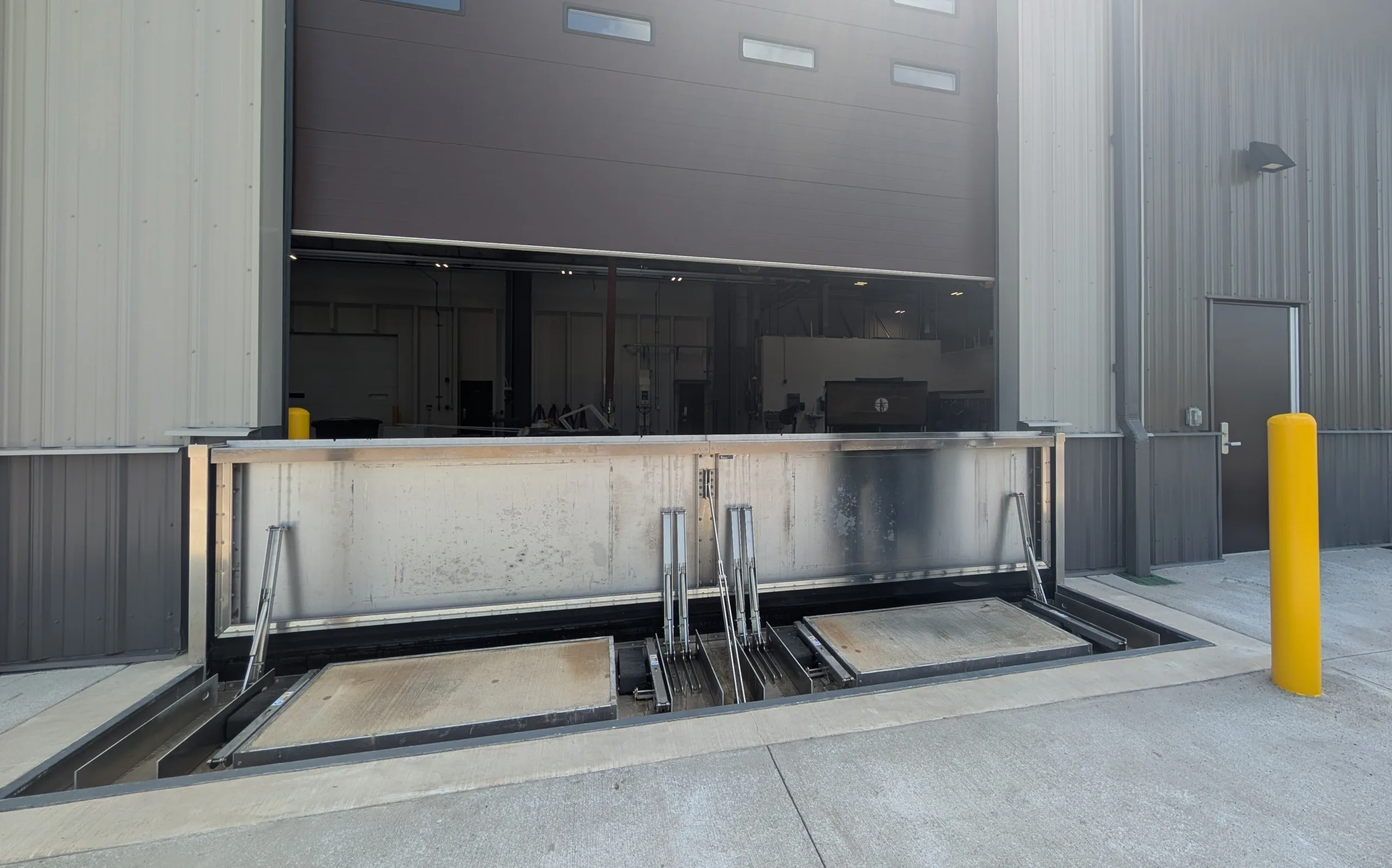

It’s never been easier to keep your property safe from flooding, thanks to the AquaTrigger® Automatic Flip-Up Flood Barrier. This flood protection solution self-stores flush with a walk/drive surface. It is AASHTO H-20 / HS-20 load rated for large truck traffic, and if flooding occurs, the water’s hydrostatic pressure causes the barrier to automatically pivot up, providing water protection up to eight feet in height. It’s ideal for commercial applications, including driveways/walkways, storefronts, exterior door openings and loading docks.

In addition to being passively activated, the AquaTrigger Automatic Flip-Up Flood Barrier can be manually deployed with its One-Touch Deployment™ feature, which allows you to easily raise the barrier in advance, to inspect the barrier or to perform maintenance as needed. An optional electronic deployment feature is also available to deploy one or more barriers.

Request More Info

To download specifications and product information, see the black tabs located in the upper right corner (desktop) or bottom (mobile) of your screen. To receive an Operation & Maintenance Manual, please contact PS Flood Barriers at (877) 446-1519.

AQUATRIGGER® AUTOMATIC FLIP-UP FLOOD BARRIER BENEFITS

Always Ready – This passive barrier is always in place and deploys by floodwater.
One-Touch Deployment™ – The barrier can be deployed manually with a single touch for pre-deployment or maintenance and inspection.
Optional Electronic Deployment – This optional feature allows for electronic deployment of one or more barriers from a central location.
Higher Load Rating Than Ever Before – This barrier is engineered to the AASHTO H-20 / HS-20 load rating for large truck traffic and independent-party validated, meeting the requirements of the ANSI / FM Approvals 2510-2020 4.3.3 Hydrostatic Test.

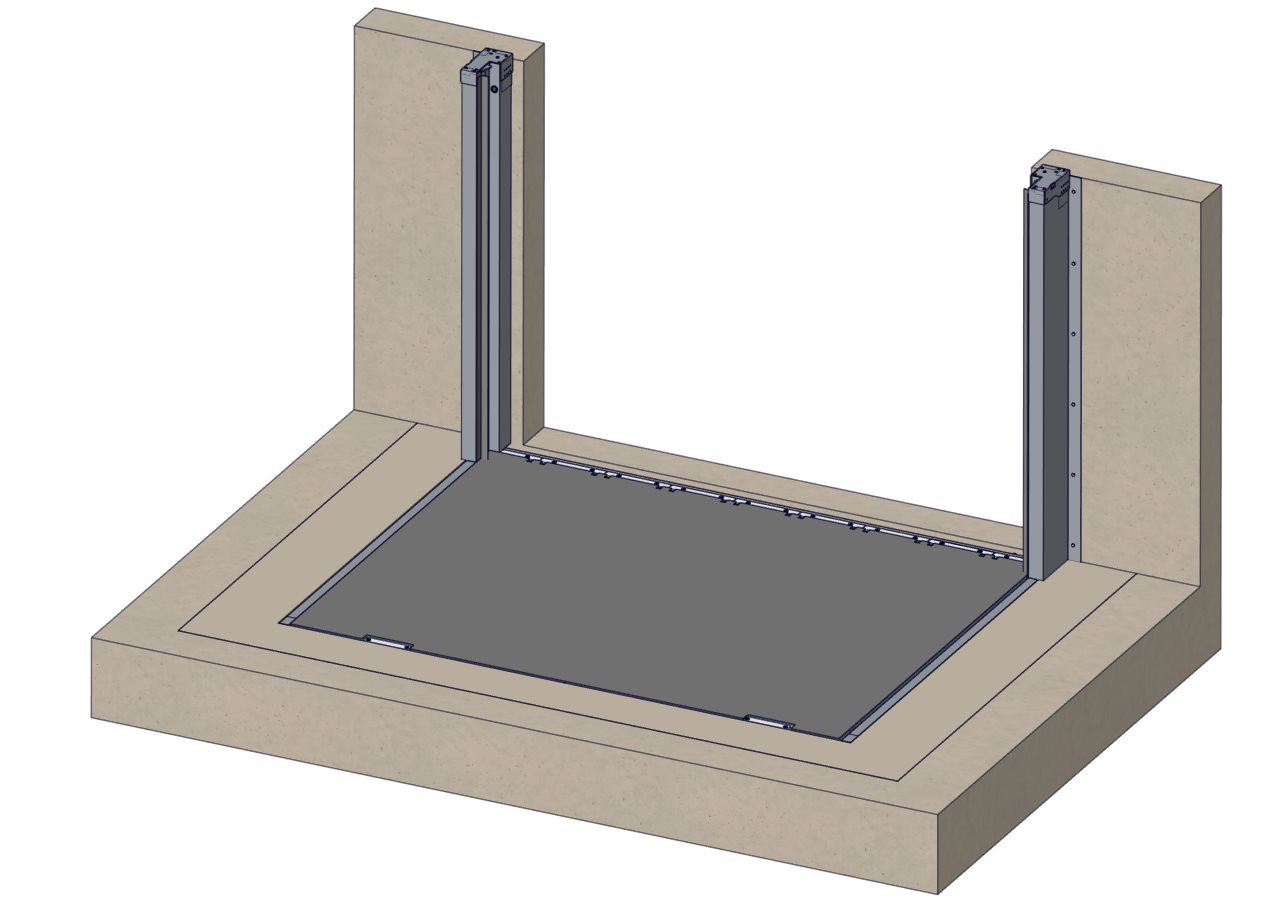

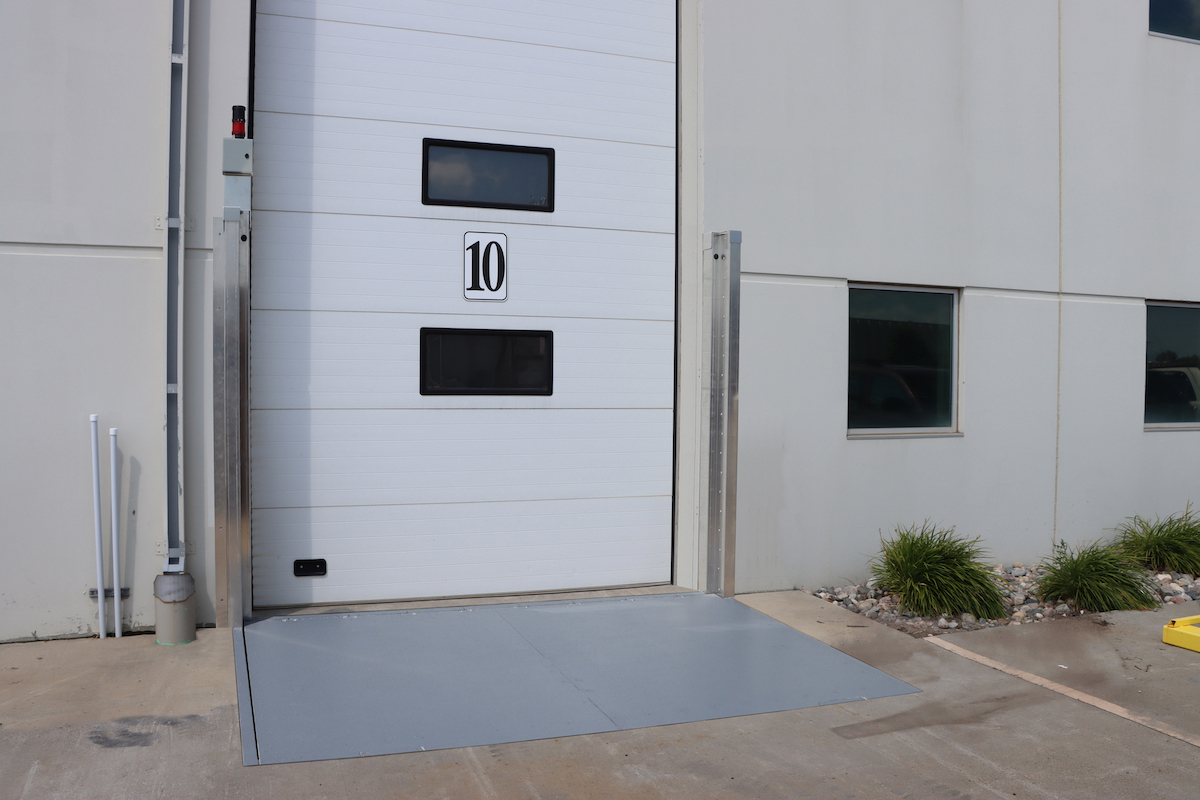

No Tripping Hazards – The barrier self-stores flush with a walk/drive surface for unimpeded traffic passage without creating any tripping hazards.

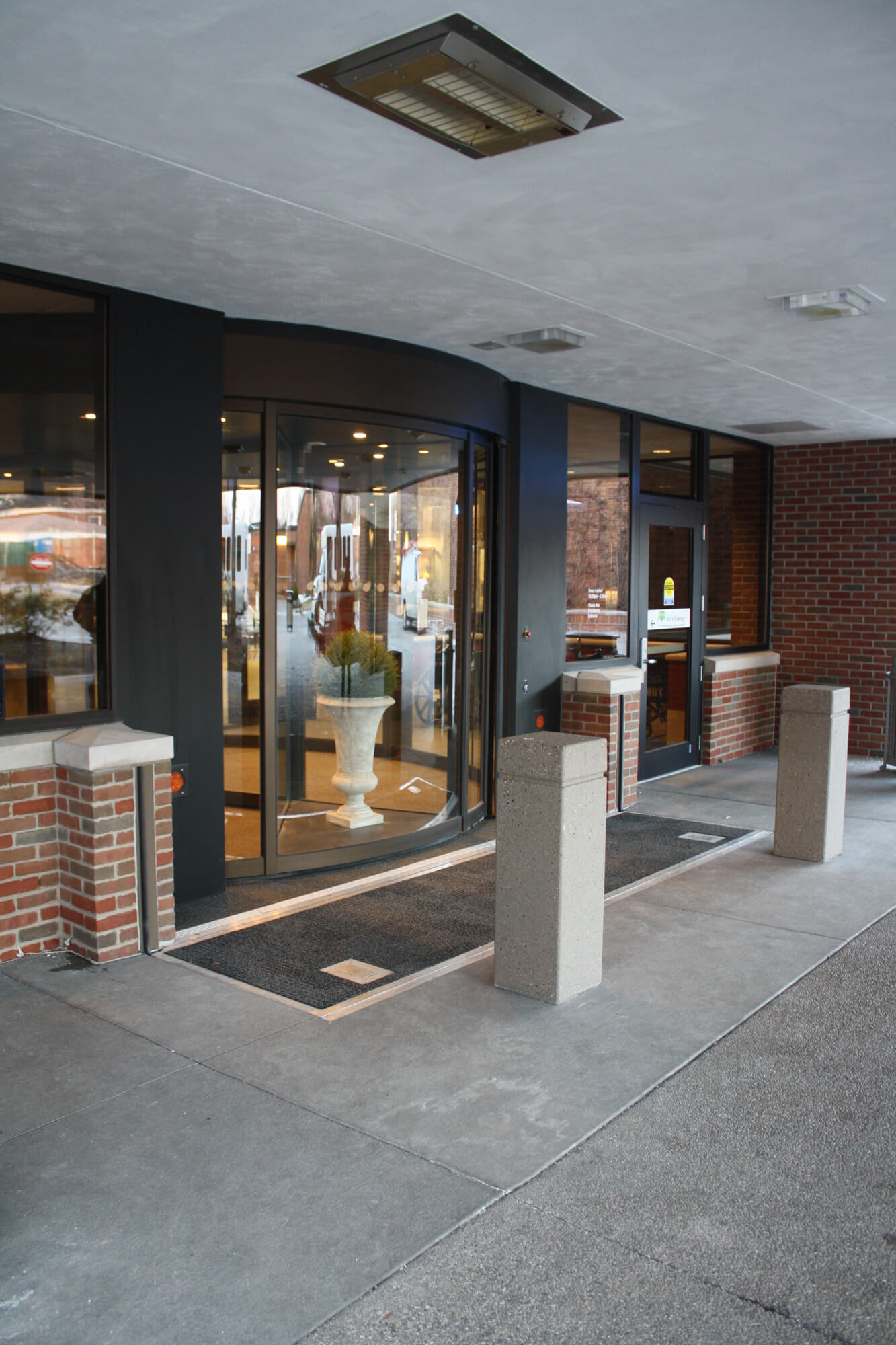

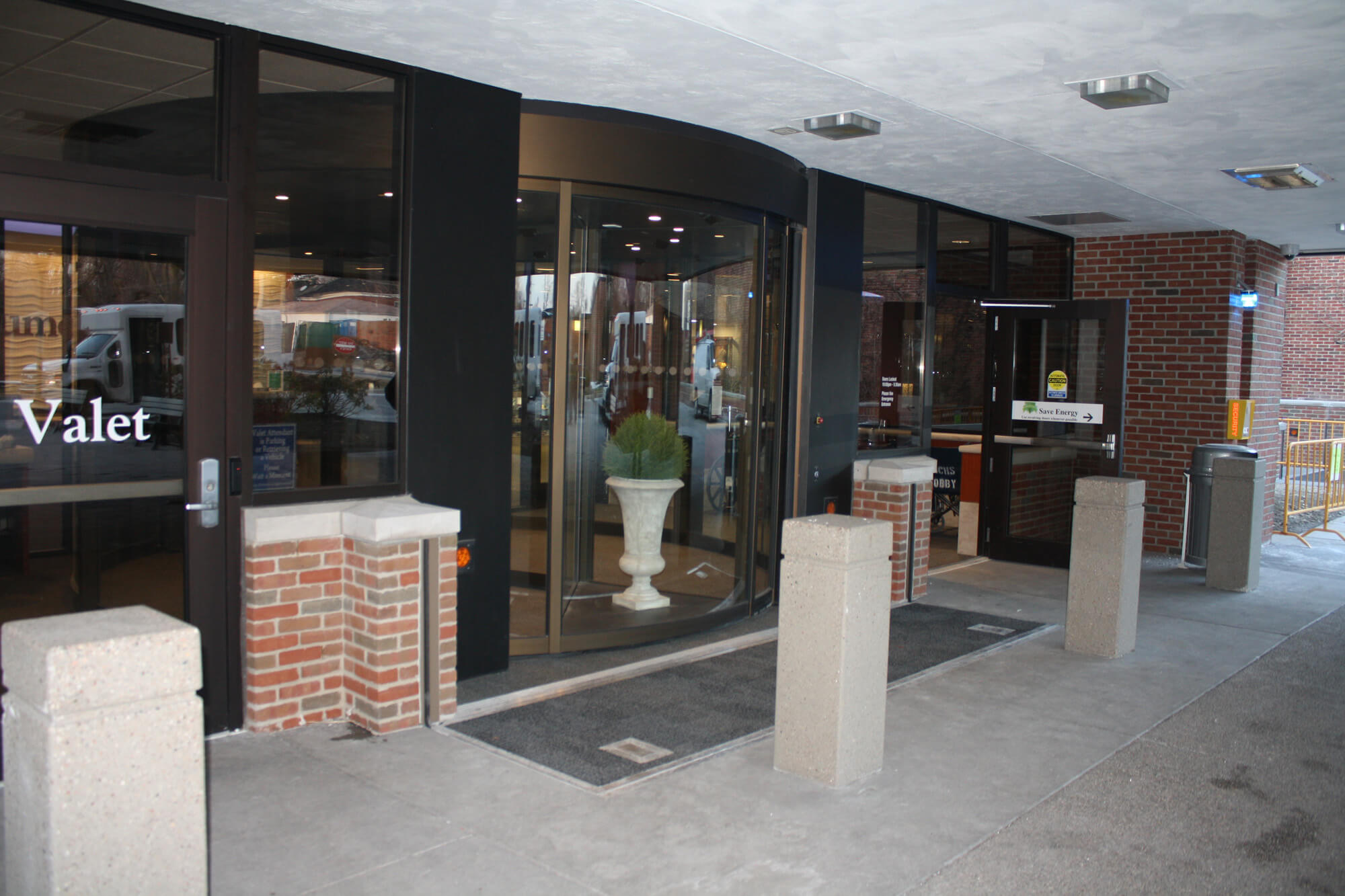

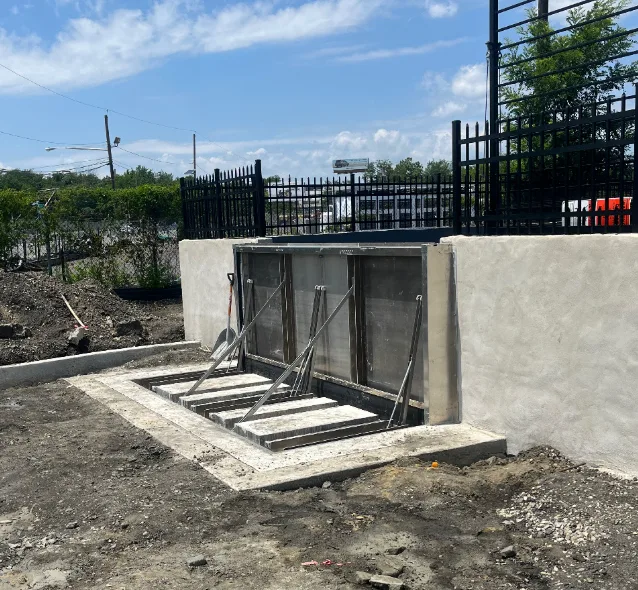

Ideal For A Variety Of Applications – The AquaTrigger Automatic Flip-Up Flood Barrier protects buildings from water infiltration through exterior building openings, protects openings in floodwalls and provides spill containment to keep chemical spills or sprinkler releases from spreading throughout your facility or harming the environment. It is custom-engineered to fit your facility and flood loads.
All Corrosion-Resistant Construction – Featuring an all-aluminum panel and basin, this barrier includes stainless steel and coated steel fasteners and components, as well as UV- and chemical-resistant flood seals. In addition, the gaskets are hidden when in the stored position, which protects them from weathering, UV exposure and vandalism.
Quick And Simple Installation – The AquaTrigger Automatic Flip-Up Flood Barrier requires minimal below grade depth (approximately 8.5″ for installation clearance). It ships as a fully assembled unit and most sizes can be installed in a prepared site on the same day as delivery.
