Hydro1® Pedestrian Flood Door
The Flood Door That Sets the Standard
The Hydro1® Pedestrian Flood Door from PS Flood Barriers® redefines the term “multifunctional,” serving as both a passive flood-protection barrier and a normal-use pedestrian/egress door. The Hydro1 is engineered to be one of the best flood doors available, featuring the lowest leakage rate in the industry and requires no human intervention to deploy. Thousands of customers have trusted Hydro1 flood doors to protect hospitals, infrastructure, commercial facilities, transportation systems and mission-critical buildings around the world.

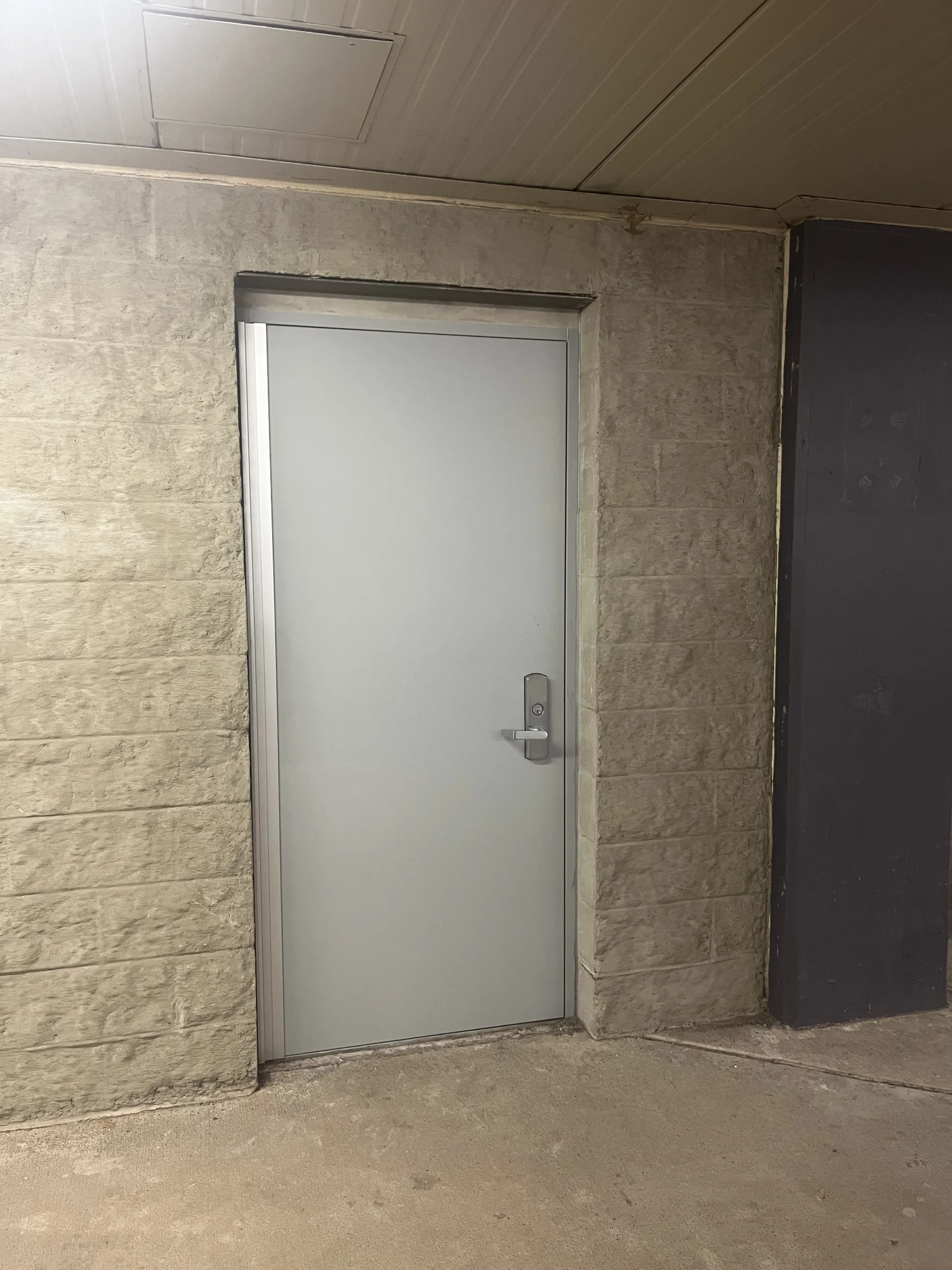

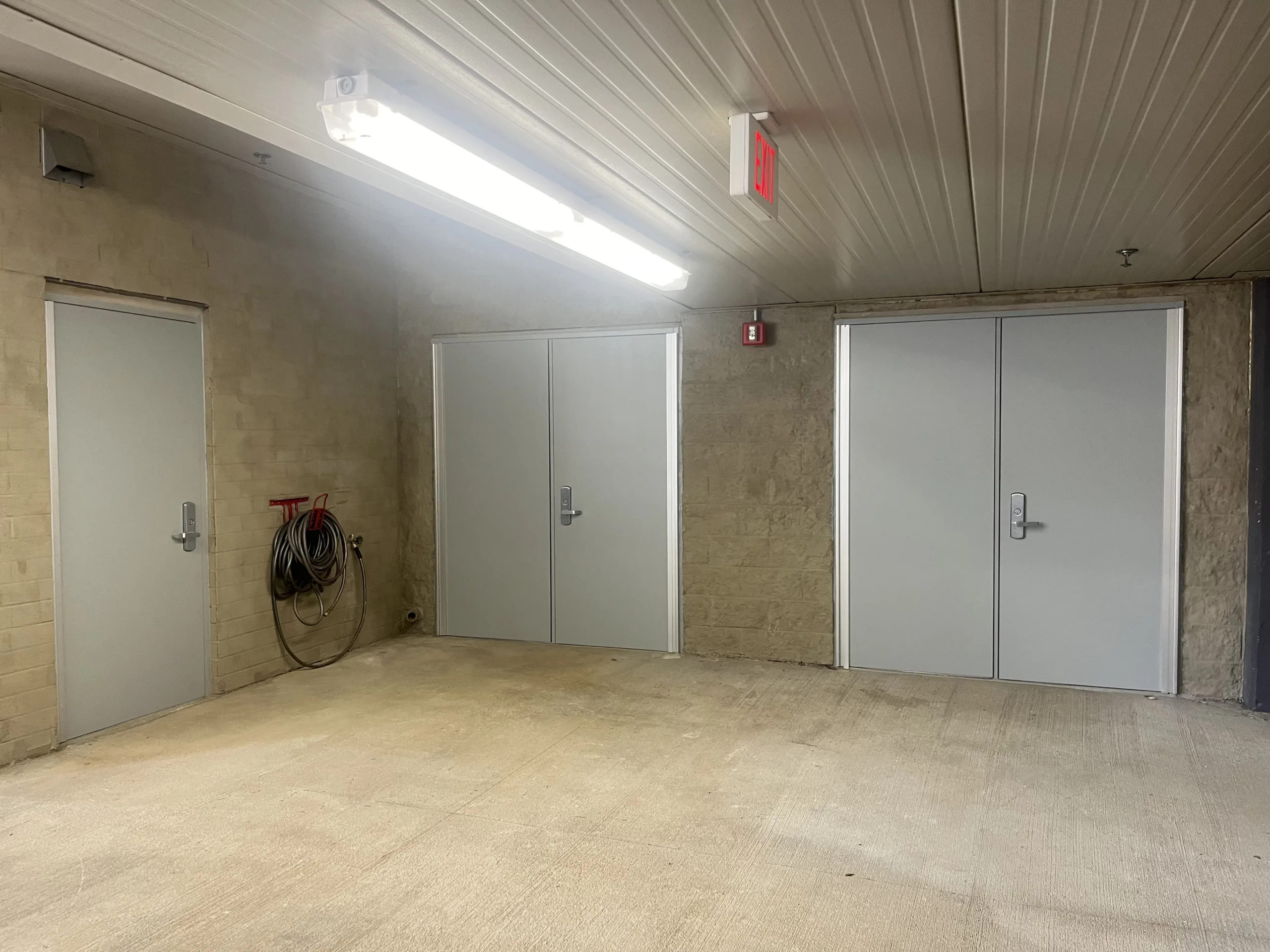

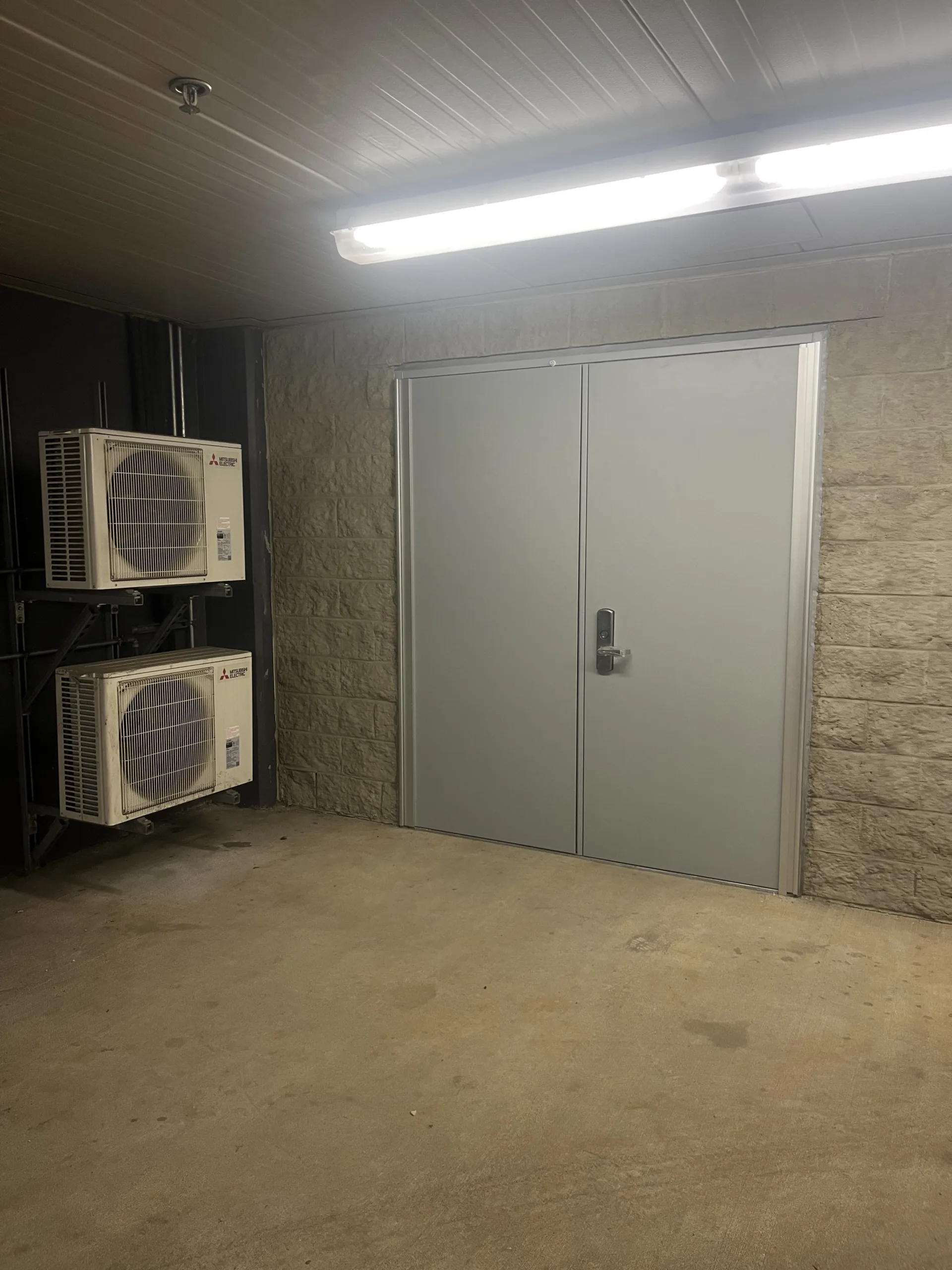

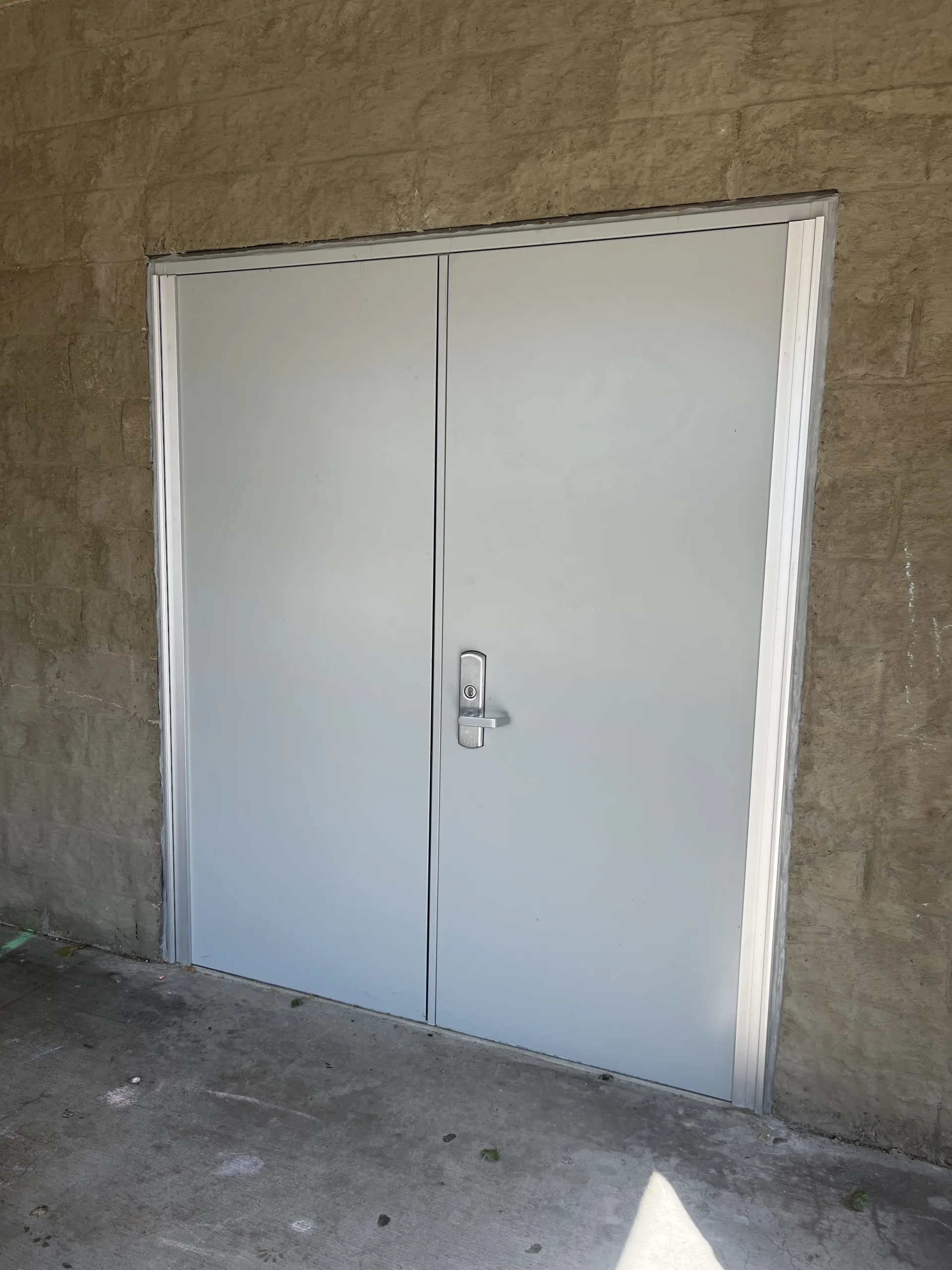

The Hydro1 is a purpose-built flood door, not to be confused with repurposed hollow metal doors that fail to meet flood codes (and feature gaskets on walking surfaces). The Hydro1 Pedestrian Flood Door is 100% customizable in single or paired configurations.
Our custom-built Hydro1 doors have been independent-party witness tested to 3′, 8′, 20′ and 30′ water protection heights with 50% less leakage than the ANSI/FM Approvals 2510-2020 4.3.3 standard (hardware included). In addition, FM Approvals has certified the Hydro1 Pedestrian Flood Door to withstand 8 feet of water and the new Hydro1-XFL to withstand an incredible 30 feet of water pressure. Not only did the Hydro1 and Hydro1-XFL pass, their leakage performance tested far below the maximum leakage rates allowed by FM Approvals standards. Based on this unmatched performance, we confidently recommend the Hydro1® as your best option.
To download specifications and product information, see the black tabs located in the upper right corner (desktop) or bottom (mobile) of your screen. To receive an Operation & Maintenance Manual, please contact PS Flood Barriers at (877) 446-1519.
⚠️ WARNING:
This product can expose you to chemicals including nickel, lead, and hexavalent chromium, which are known to the State of California to cause cancer, and lead and toluene diisocyanate (TDI), which are known to cause birth defects or other reproductive harm. These substances may be present in or released from materials such as galvanized coatings, stainless steel, aluminum alloys, and polyurethane paints or coatings. For more information, go to www.P65Warnings.ca.gov.
*This flood product has been tested to the 2020 ANSI/FM 2510 flood protection standard and has passed the required performance criteria for the Hydrostatic Load Test (section 4.3.3). All testing is conducted with an independent third-party observer to provide validation in the testing procedures and results.
| Product | Configuration | WPH FT | 90-Min Fire Rating | Florida Approved | FM Approval |
|---|---|---|---|---|---|
| Hydro1-PD520 | Single | 8* | No | Yes** | Yes |
| Hydro1-PD520 | Paired | 8* | No | Yes** | Yes |
| Hydro1-PD520-XFL | Single | 30* | No | Yes** | Yes*** |
| Hydro1-PD520-XFL | Paired | 10* | No | Yes** | No |
| Hydro1-PD522 | Single | 8* | Yes | Yes | Yes |
| Hydro1-PD522 | Paired | 8* | Yes | Yes | Yes |
| Hydro1-PD522-XFL | Single | 30* | Yes | Yes | Yes*** |
| Hydro1-PD522-XFL | Paired | 10* | Yes | Yes | No |
| Hydro1-PD525 | Single | 8* | No | No | No |
| Hydro1-PD525 | Paired | 8* | No | No | No |
| Hydro1-PD525-XFL | Single | 30* | No | No | No |
| Hydro1-PD525-XFL | Paired | 10* | No | No | No |
| Stock Hydro1 | Single | 8* | Yes | Yes | Yes |
*Water protection height is dependent not only on the door itself, but also on the supporting wall structure and overall load conditions. Performance values may vary based on the specific application and installation conditions.
**Fire latch is used on non-fire doors.

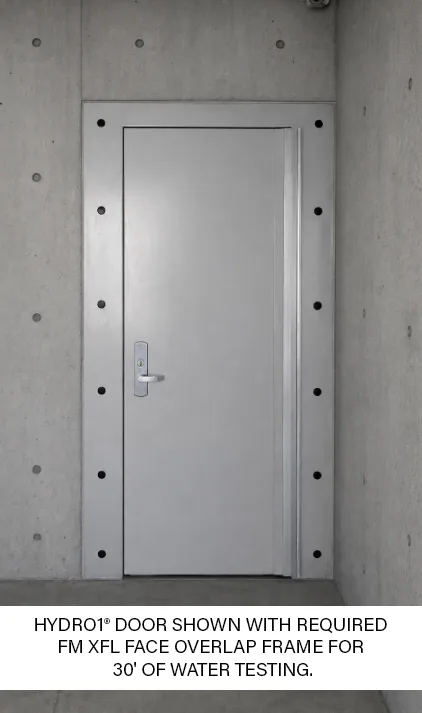

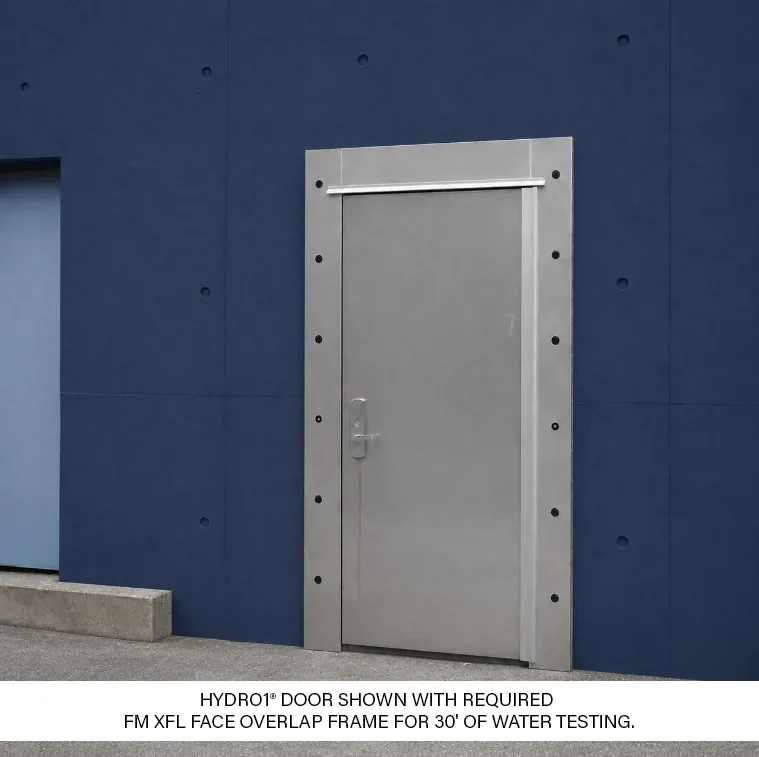

***FM XFL requires a face over lap frame.
Note: The certifications shown above apply only to door configurations that have been tested and certified in accordance with the applicable standards. For projects with unique opening sizes, loading conditions or performance requirements outside the scope of those certifications, PS Industries can evaluate and engineer a custom solution tailored to the specific project needs.
Configurations
HYDRO1® BENEFITS
- The most progressive products in the passive flood-protection market, serving as both flood-protection barriers and normal-use pedestrian doors
- Always in place, providing 24-hour flood protection while still allowing access to your facility
- Lowest leakage rate in the Industry with independent-party-witnessed factory testing to 3′, 8′, 20′ and 30′ water protection heights; 50% less leakage than the ANSI/FM Approvals 2510-2020 4.3.3 standard; hardware included
- Passed Florida Product Approval testing, including approval for the High Velocity Hurricane Zone (Miami-Dade and Broward counties). FL #39631
- Professionally hydrostatic load-tested to the ANSI/FM Approvals 2510-2020 4.3.3 standard (testing documentation available)
- One-piece perimeter gasket creates a forgiving, watertight seal
- Door and threshold are ADA compliant
- Professionally engineered to meet flood codes
- Fully assembled with authorized hardware and lockset installed
- Step-by-step, detailed installation instructions
- 90-minute fire rated and emergency egress options
- Designed and manufactured in the USA
