Flex-Cover® Resilient Tunnel Plug
RTP

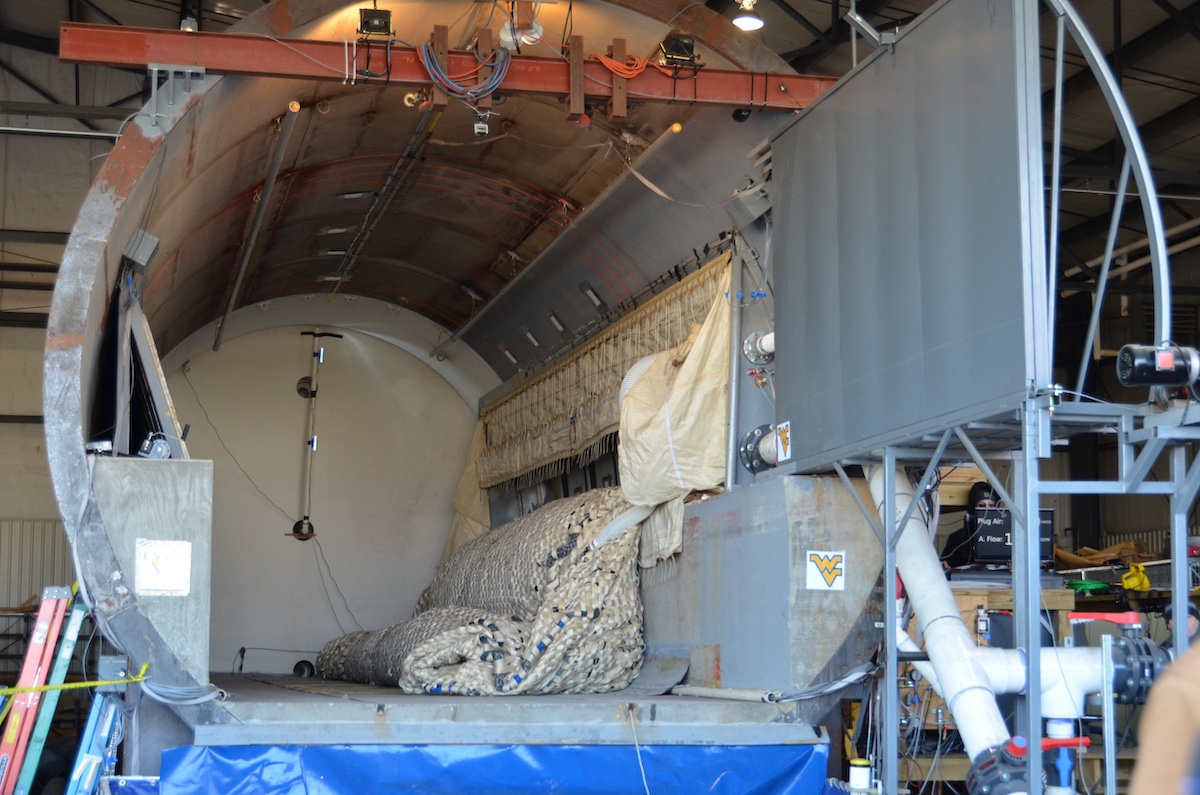

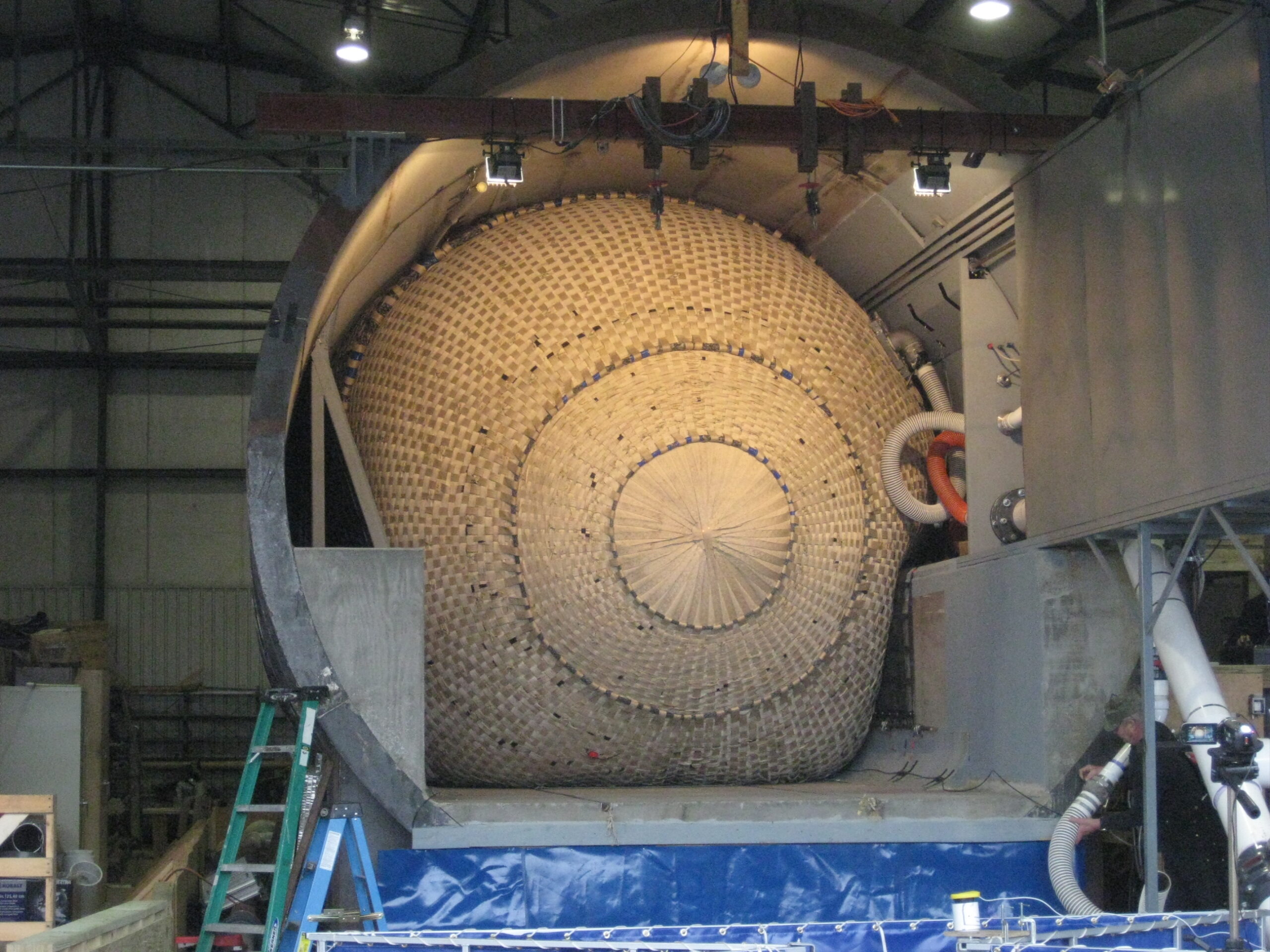

The Flex-Cover® Resilient Tunnel Plug is a high-strength inflatable device that rapidly deploys to prevent flooding in a tunnel of any shape or size. Similar to how an automobile airbag functions in that this device resides in a small container, you then pressurize it (either remotely or locally) to shape when a flooding event occurs. Internal pressure exceeds the external water pressure threat to create the barrier, and the plug is held in place with friction. The Resilient Tunnel Plug can also be used for other applications, including the prevention of flooding from top-down water events or to partition tunnels to prevent the movement of smoke, chemical/biological agents or people. It has been validated via testing in a 16.5-foot-diameter representative rail tunnel against a 30-foot water head pressure challenge.
The Resilient Tunnel Plug was developed under a Department of Homeland Security Science & Technology Directorate program. It was originally developed for security applications to protect underground subway systems from flooding caused by damage to an underwater transit tunnel. It consists of a custom designed, damage-tolerant plug, a container, an inflation system that monitors system health and controls pressure. It can be used as a fixed asset at point-of-use for a rapid response approach or as a transportable system that can be deployed to a location when needed.
To download specifications and product information, see the black tabs located in the upper right corner (desktop) or bottom (mobile) of your screen. To receive an Operation & Maintenance Manual, please contact PS Flood Barriers at (877) 446-1519.
⚠️ WARNING:
This product can expose you to chemicals including nickel, lead, and hexavalent chromium, which are known to the State of California to cause cancer, and lead and toluene diisocyanate (TDI), which are known to cause birth defects or other reproductive harm. These substances may be present in or released from materials such as galvanized coatings, stainless steel, aluminum alloys, and polyurethane paints or coatings. For more information, go to www.P65Warnings.ca.gov.
FLEX-COVER® RESILIENT TUNNEL PLUG BENEFITS
- Point-Of-Use Storage – Deploys at the last moment for minimal operational disruption
- Adaptable – Conforming inflatable structure can adapt to any tunnel configuration
- Compact Stowage – Stores in small spaces
- Scalable Design – Can be sized to fit any tunnel
- Simple Installation – Requires limited changes to infrastructure to install, resulting in low installation and operational impact costs
Blocks Threats – Weather, flooding, smoke, chemicals or people
Customizable – Can customize its weight, portability, size and material to stop specific threats
⚠️ WARNING:
This product can expose you to chemicals including nickel, lead, and hexavalent chromium, which are known to the State of California to cause cancer, and lead and toluene diisocyanate (TDI), which are known to cause birth defects or other reproductive harm. These substances may be present in or released from materials such as galvanized coatings, stainless steel, aluminum alloys, and polyurethane paints or coatings. For more information, go to www.P65Warnings.ca.gov.
RESOURCES
ILC Dover Flood Pro Division was purchased by PS Flood Barriers® in January 2023. Contact us at 877-446-1519 for any information relating to these articles.
